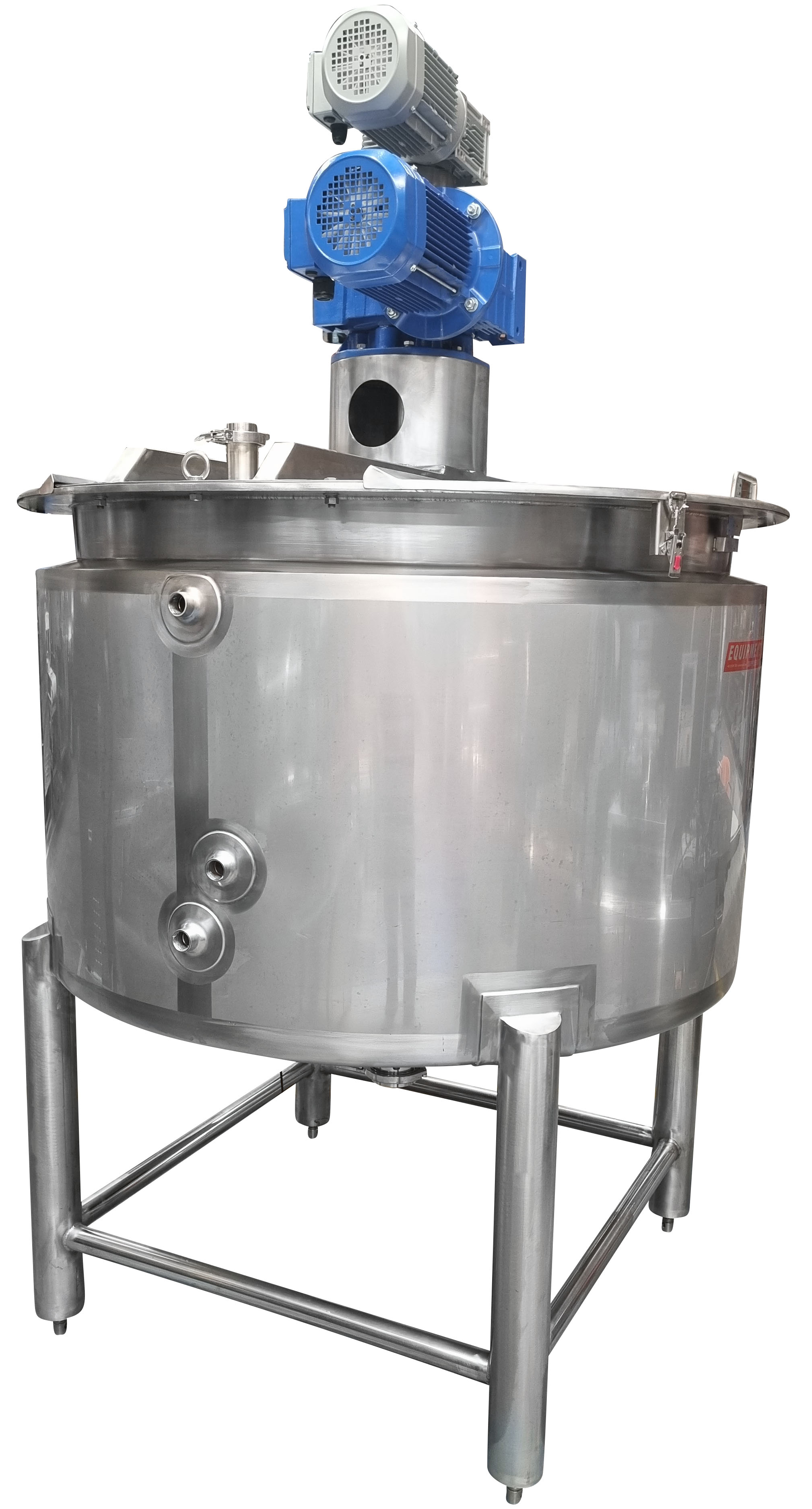

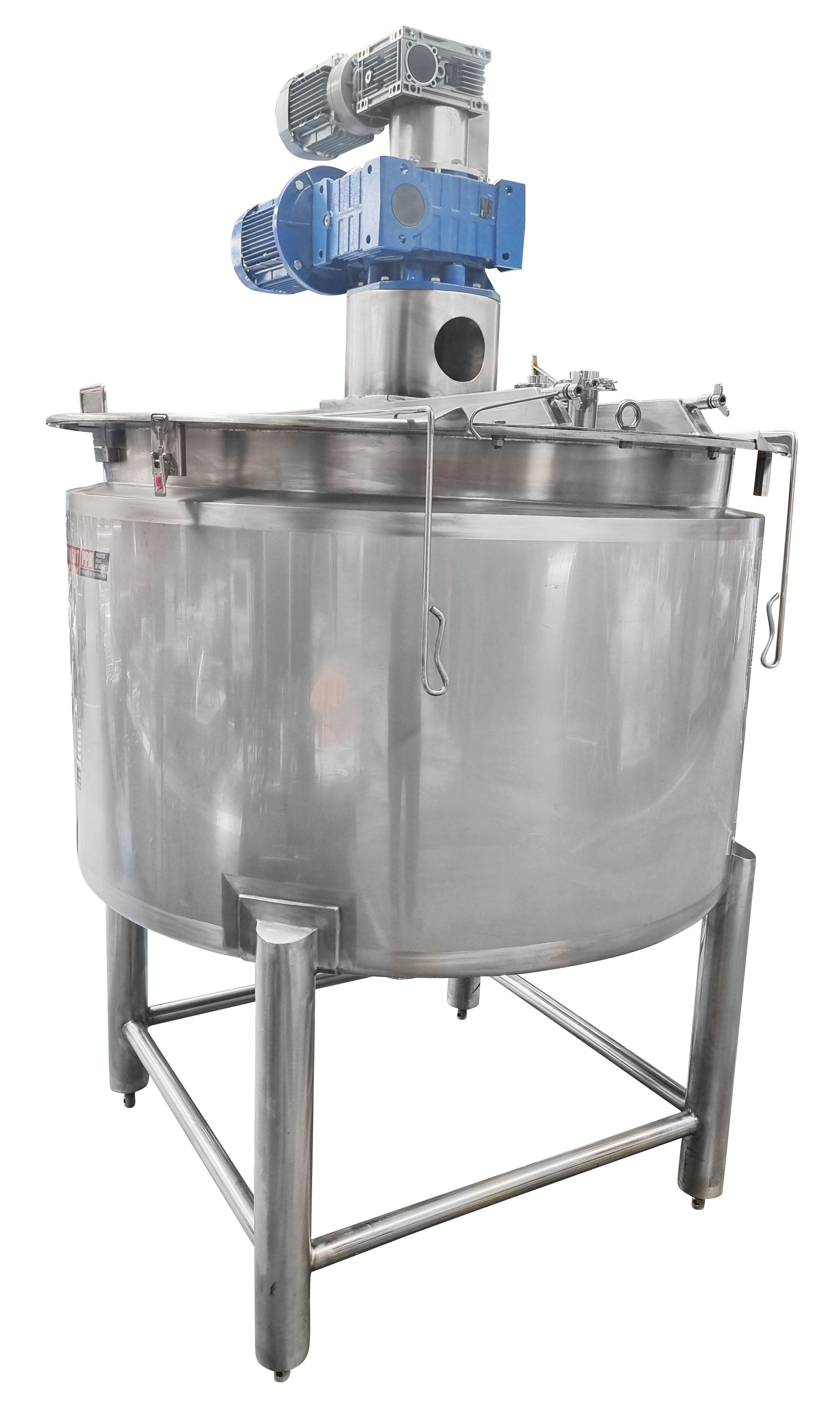

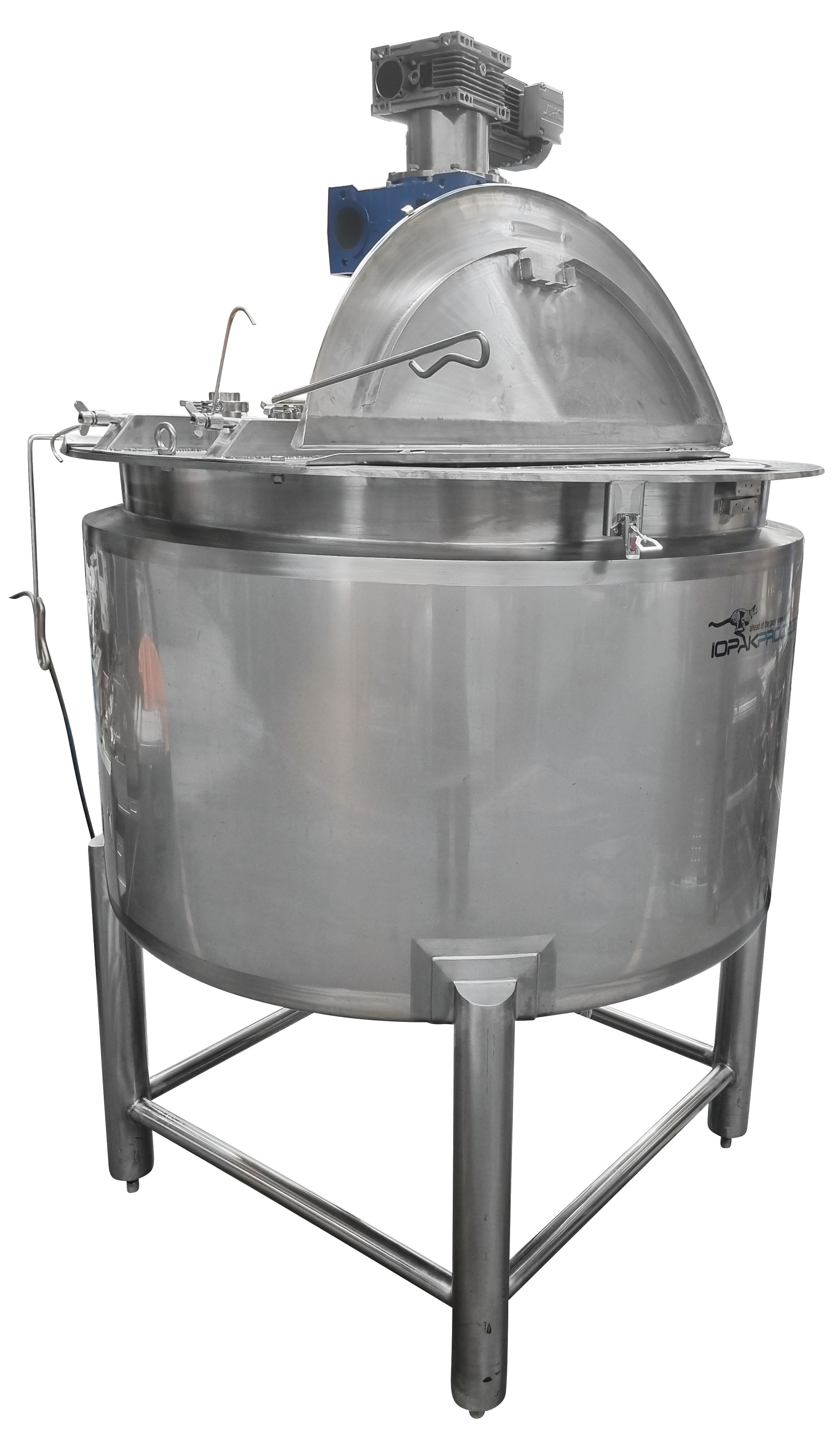

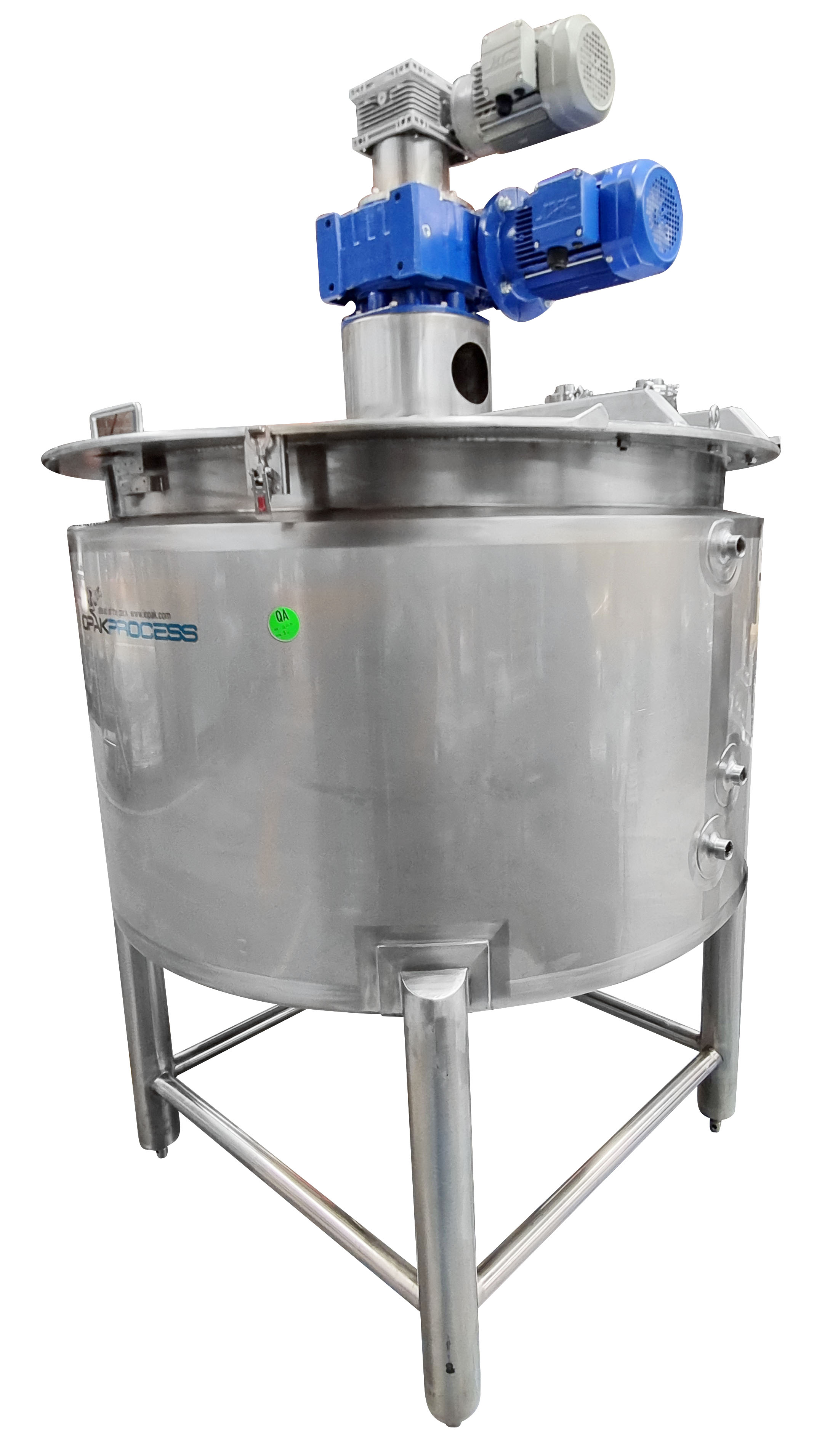

2000 CRM Jacketed 2000L Cooker Kettle (Contra Rotating) 316

The IOPAK Cooker/Kettle is used by many food manufacturers - many of whom have purchased multiples. It is used for jams, sauces, stews, stocks, confectionery pastes, etc.

The IOPAK Kettle has many FEATURES:
- Good standard of fabrication
- Huge value for money
- Design input from our customers used by our engineers to constantly improve design
- Kettle fabricated in AISI 316
- Contra- Rotating mixer arm is bearing supported both top and bottom ensuring a smooth, quiet mixing process
- Contra- Rotating mixer arm is designed to prevent burn on as well as treating products gently

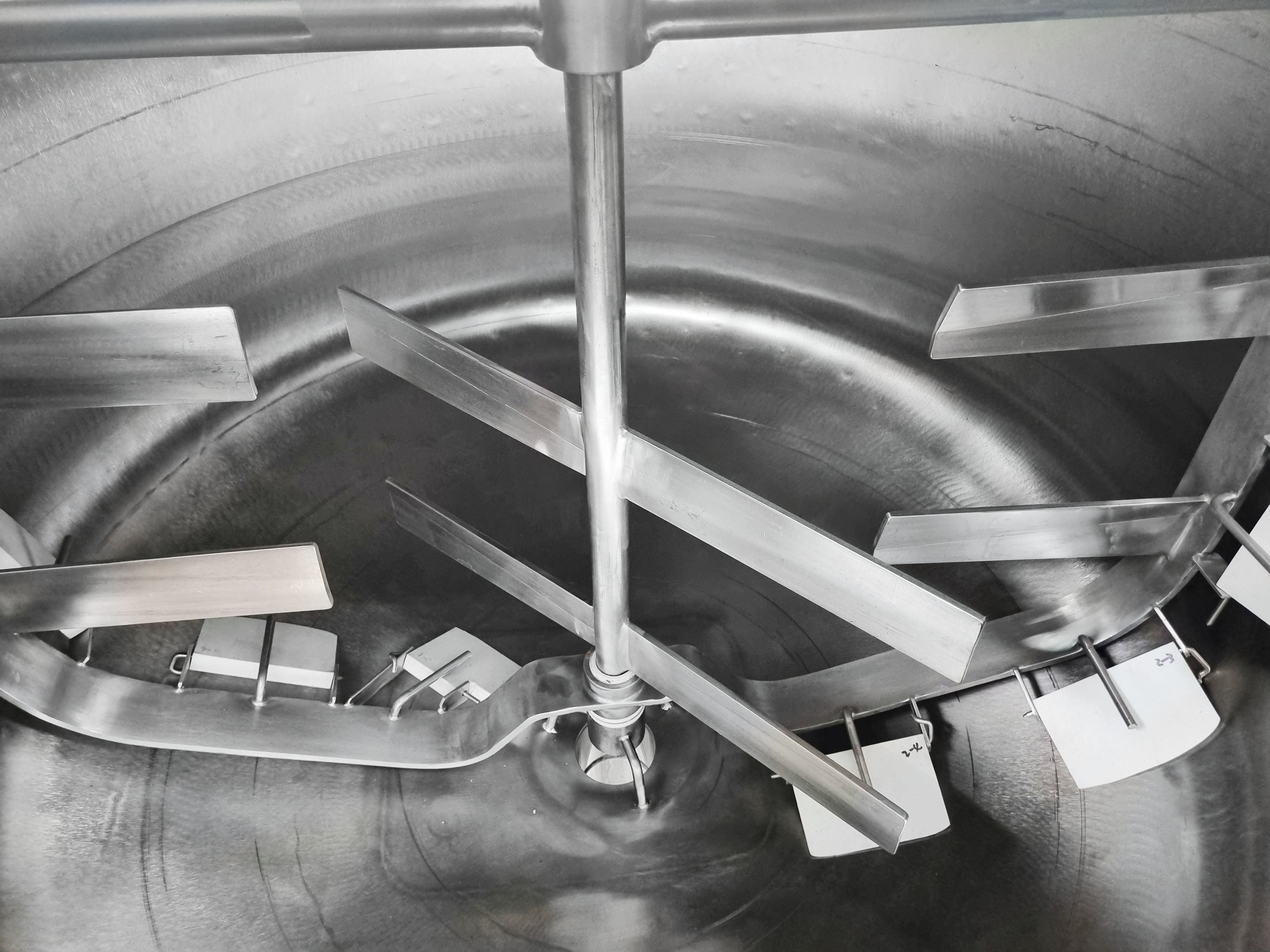

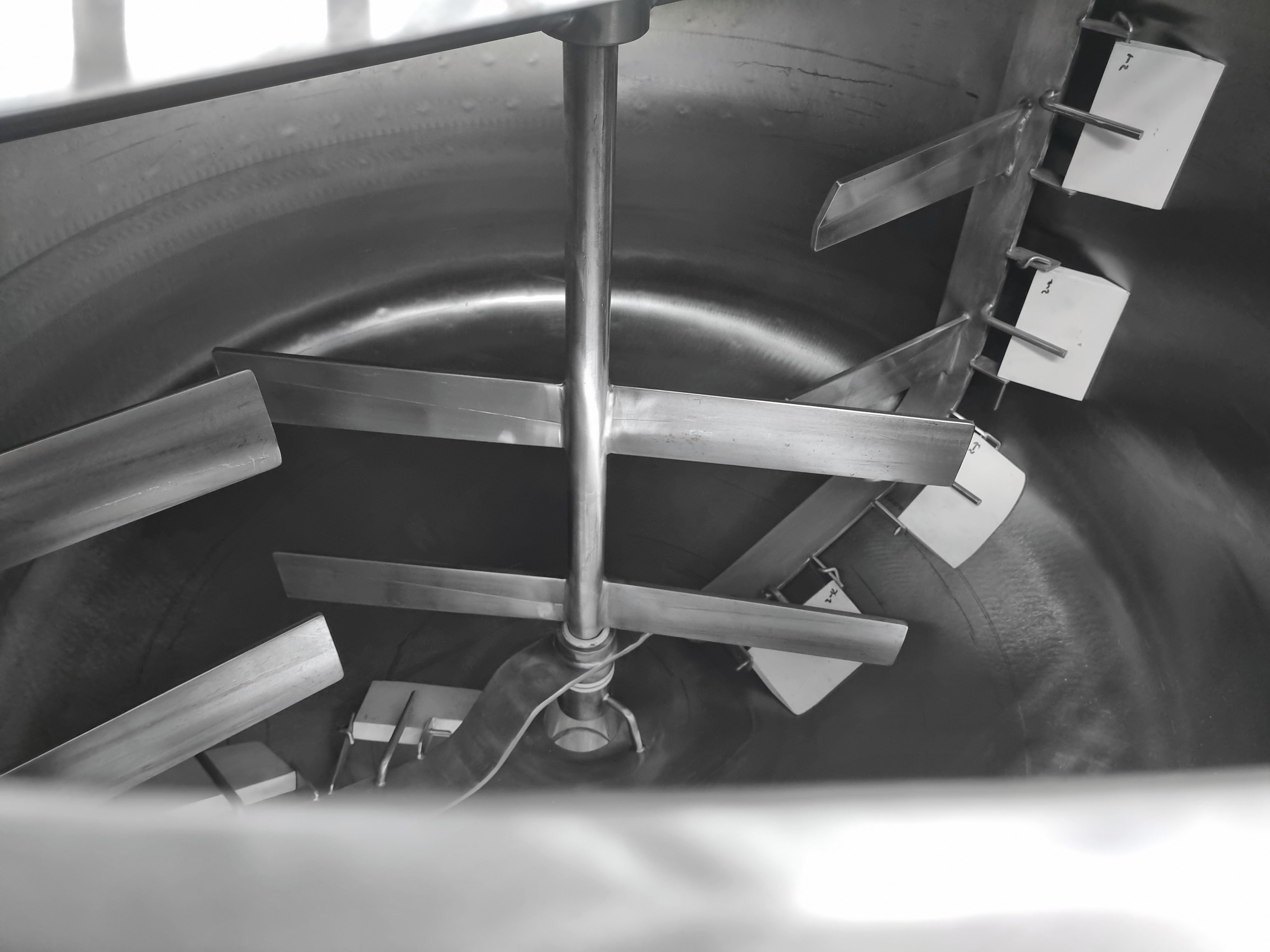

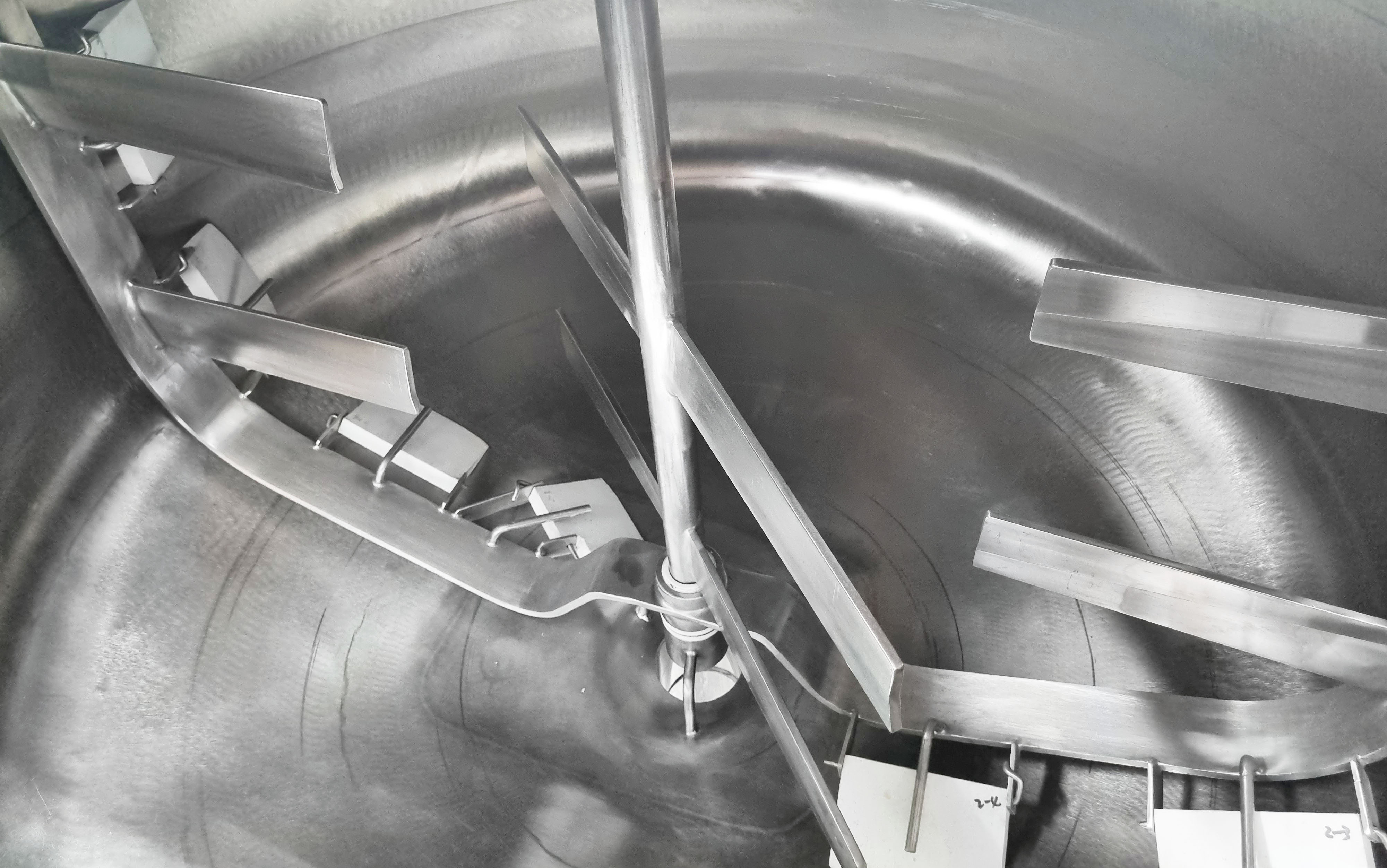

- Teflon tipped hinged scraper arms ensure smooth clean scraping action against the sides and bottom of the hemispherical dome shape of the process vessel
- Simple to clean
- Jacket can be used for cooking or cooling
- Digital Temperature Indicator for temperature control

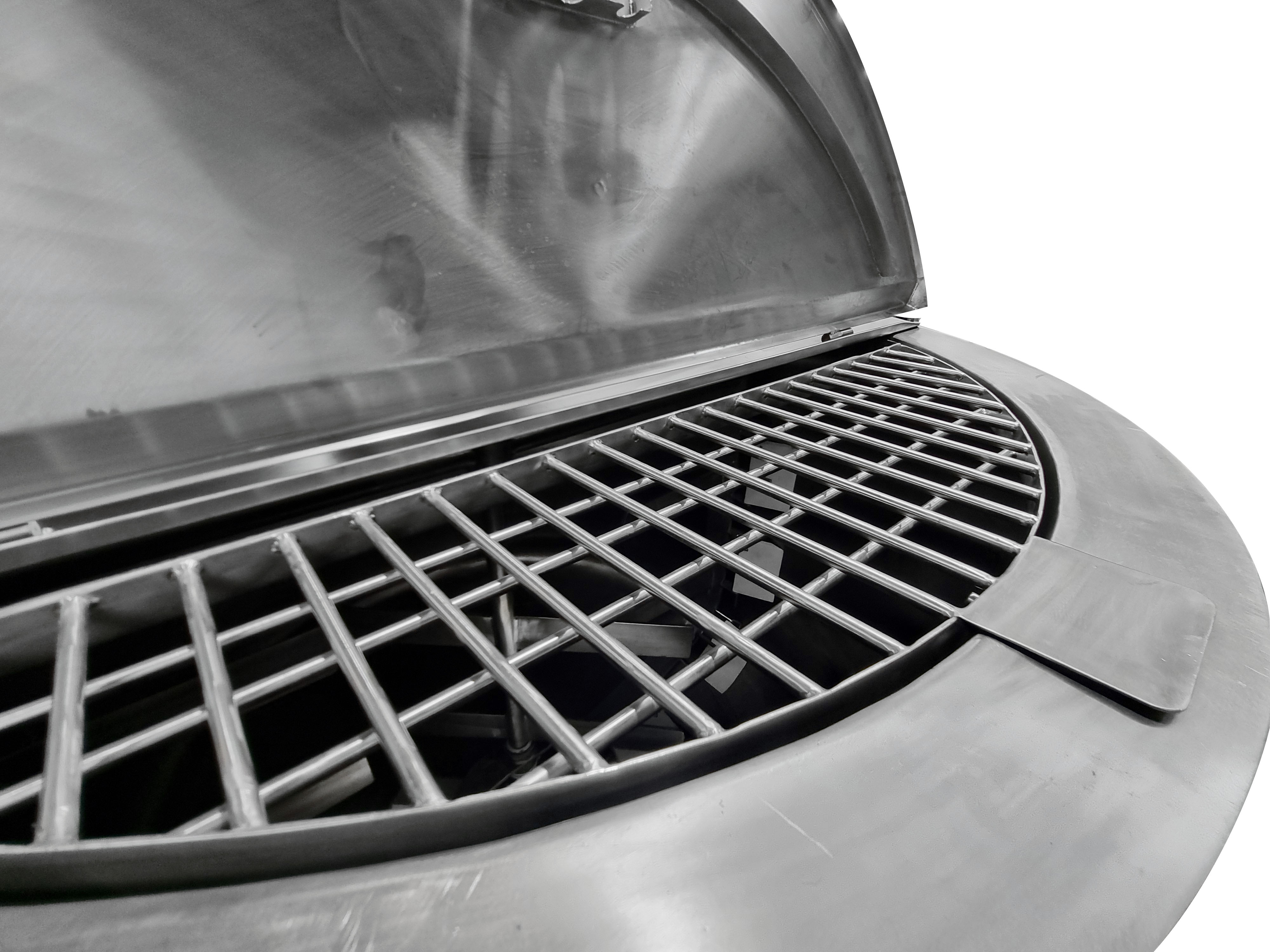

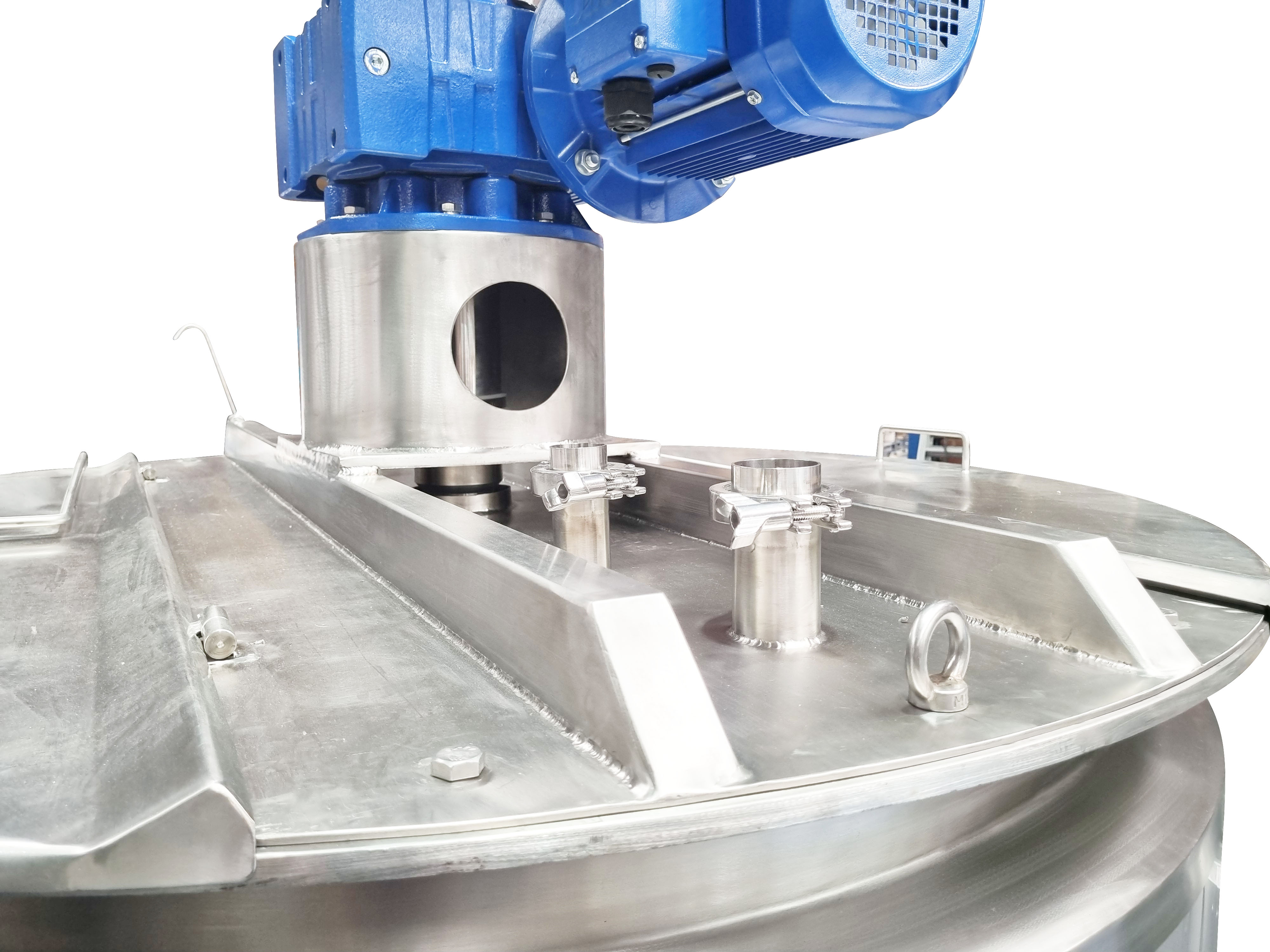

- 2 x half moon lids for hygiene

TECHNICAL DETAILS:

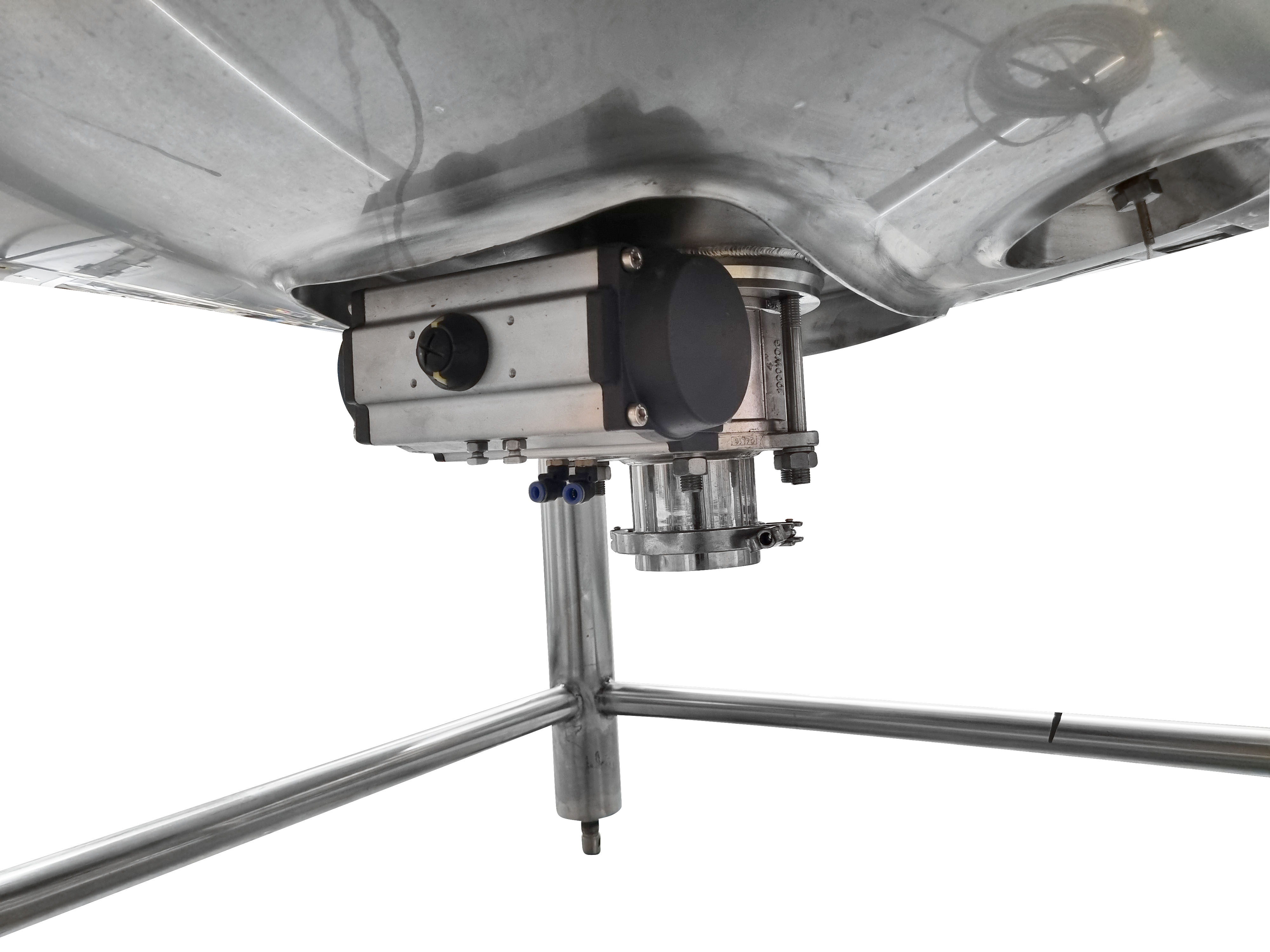

The interior of the tank has a dome base and is fitted with a 4" sanitary product outlet including an air actuated discharge ball valve.

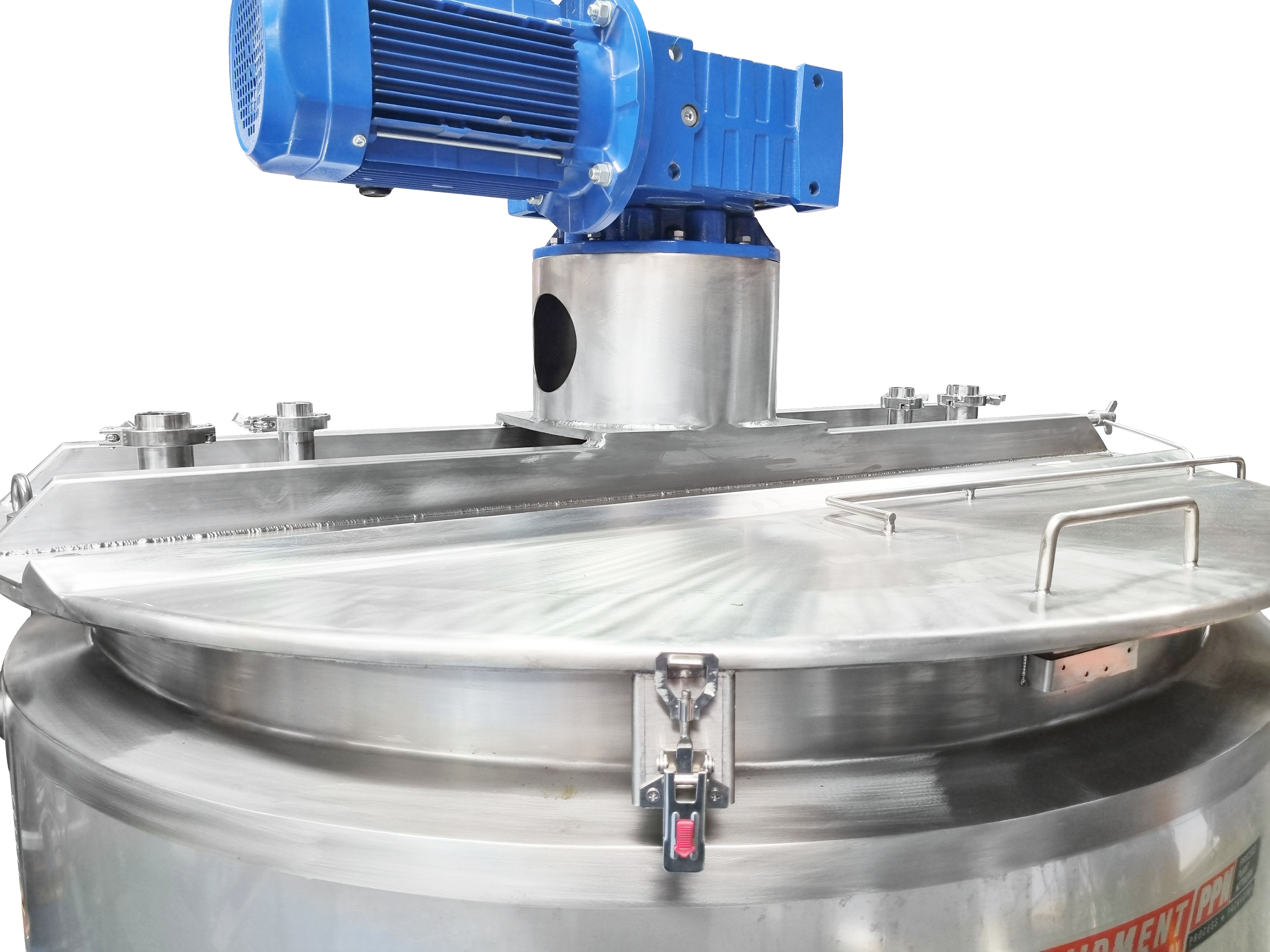

A swept surface (Teflon tipped) stirrer is top and bottom bearing supported and direct driven by a 3kW, 29rpm, 415V AC, 3 Phase gear motor.
An additional contra - rotating centrally mounted agitator is fitted with a 1.5kW, 49rpm gearmotor.
A digital (- 20 to 150 deg C ) temperature indicator indicates the temperature of the tank contents.
Design Pressure (WP) : 300 KPa
Test Pressure (HTP) : 458 KPa
Design Temperature ( DT) :135 deg C (max 150 deg C)
Code: AS1210 Class 3
VWA: V0420425
Internal Diameter - 1600 mm
Internal Depth - 1250mm
Outer Diameter - 1750mm
Lid height above floor - 1900mm
Outlet Height above floor - 560mm
Overall Height - 2800mm
Jacket inlet & outlet ports 25mm diameter
Material of Construction - 316 s/s (inner) 304 s/s (outer)
Wall Thickness: 4mm inside wall, 2mm jacketed wall
Temperature Probe: PT100

Optional Price for 500KPa: $5,600 + GST
Design Pressure (WP) : 500 KPa
Test Pressure (HTP) : 750 KPa

* Recommended Oil: TORA 220 or equivalent (if the gearbox is 7 years old or more, TORA 320 or equivalent)
